İkincil Birim Trafo Merkezi

26 Haziran 2026Alçak Gerilim Ürünü 8410

Genel Bakış

Secondary Unit Substation is a complete integrated power distribution solution designed to receive medium-voltage power, transform it to low voltage, and distribute it safely to downstream electrical loads. It normally combines medium-voltage switchgear, a distribution transformer, and low-voltage switchgear or switchboard into one coordinated system.

Ürünün Avantajları

Complete Integrated Power Distribution SolutionThe Secondary Unit Substation integrates medium-voltage switchgear, transformer, and low-voltage distribution equipment into one coordinated system.

Compact Design and Space SavingThe integrated layout reduces the space required for separate electrical equipment.

Reliable Medium-Voltage Protection and ControlThe medium-voltage section can be equipped with MV switchgear, load interrupter switchgear, or metal-clad switchgear according to project requirements.

Efficient Voltage TransformationThe transformer section converts medium-voltage power to low-voltage power for downstream distribution.

Tipik Teknik Özellikler

Ana İşlev	Medium-voltage receiving, voltage transformation, low-voltage distribution
Anma Gerilimi	Project-based MV and LV voltage configuration
Transformatör Kapasitesi	Customized according to project load demand
Kurulum Türü	Indoor or outdoor installation available
Enclosure Option	Metal enclosure, weather-resistant enclosure, NEMA-type enclosure optional
Protection Functions	Switching, isolation, overload protection, short-circuit protection, grounding, metering

Yalnızca tipik konfigürasyon. Nihai değerler, proje gereksinimlerine göre teyit edilir.

Uygulamalar

Secondary Unit Substation is suitable for projects that require a complete medium-voltage to low-voltage power distribution solution. It can be used as the main power distribution node for industrial, commercial, infrastructure, utility, and energy applications.

SON: Panelboard – UL67SONRAKİ: Açık Hava Çözümleri

İlgili öneriler

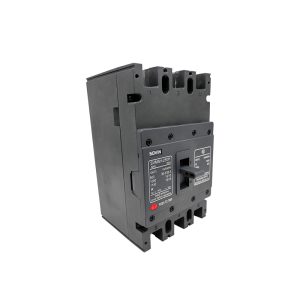

SVM5H-250H 1000 VAC MCCB
2023年11月24日 1871
General SVM5H series of moulded case circuit breaker is supplied with rated insulating voltage 1150V and used for circuit of A.C. 50Hz, rated operating voltage AC 1140V. (or below), rated operating current up to 630A for infrequent changing over a...
Ayrıntıları görüntüle
NDB2-63 MCB miniature circuit breaker
2023年5月29日 1483
1.Application scope and purpose 2.Main technical specification Product certification and implementation standard: Environmental requirements: RoHS Isolation function 3.Normal working environment: 4.Packing storage:
Ayrıntıları görüntüle
NDQ3-400
2023年5月26日 1699
1. Applicable Scope and Purpose The NDQ3-400 P-grade ATSE are applicable for sites with the AC voltage below AC380V.AC400V.AC415V and the rated frequency of 50Hz. This product complies with the GB14048.1-2012 and GB/T14048.11-2016 standards i...
Ayrıntıları görüntüle

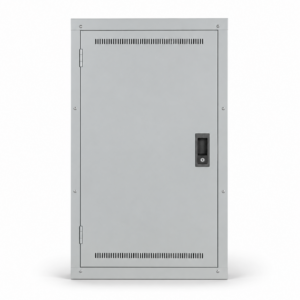

Panelboard – UL67
