Genel Bakış

Medium Voltage Metal-Clad Switchgear / MCSG is designed for safe and reliable power distribution in utility, industrial, commercial, and infrastructure projects. With a withdrawable VCB, compartmentalized metal-clad structure, insulated busbar system, mechanical interlocks, and optional arc-resistant design, it provides stable operation for medium-voltage power systems.

Orta Gerilim Metal Kaplamalı Şalt Tesisatı / MCSG

Ürünün Avantajları

Metal-Clad Compartmentalized StructureThe switchgear adopts a metal-clad structure with independent functional compartments.

Withdrawable Vacuum Circuit BreakerThe withdrawable VCB design allows the breaker to be moved safely between connected, test, and disconnected positions.

Enhanced Safety Interlocking SystemMechanical interlocks are designed to ensure the correct operating sequence under normal working conditions.

Optional Arc-Resistant DesignFor critical applications, the MCSG can be designed with arc-resistant features.

Tipik Teknik Özellikler

Rated Voltage Range	5kV–38kV, customizable according to project requirements
Typical Voltage Classes	5kV, 15kV, 27kV, 38kV
Main Breaker Type	Withdrawable Vacuum Circuit Breaker, VCB
Anma Akımı	Project-based configuration; options can be selected according to system design
Short-Circuit Rating	Project-based configuration; available designs can support high short-circuit withstand requirements
Standards	IEEE C37.20.2, IEEE C37.20.7, ANSI / UL project requirements, IEC 62271-200 reference

Yalnızca tipik konfigürasyon. Nihai değerler, proje gereksinimlerine göre teyit edilir.

Uygulamalar

Medium Voltage Metal-Clad Switchgear is used in medium-voltage power distribution systems where safe power control, reliable protection, and stable operation are required. It can be used as incoming switchgear, feeder switchgear, transformer protection switchgear, bus section switchgear, or motor feeder switchgear depending on the electrical system design.

SON: NDC1(Z)-38 AC Contactor with AC or DC CoilSONRAKİ: MV LIS ≤15 kV Orta Gerilim Yük Kesici Şalt Sistemi

İlgili öneriler

NDM2L-125
2023年5月29日 1873
1. Applicable Scope and Purpose of Circuit Breaker The NDM2L-125 molded case circuit breaker with the residual current protection (hereinafter referred to as circuit breaker) applies to infrequent switching of circuits with the AC 50/60Hz, the w...
Ayrıntıları görüntüle
NDB2-40 MCB miniature circuit breaker
2023年5月29日 1603
1.Application scope and purpose 2.Main technical specification Product certification and implementation standard: Environmental requirements: RoHS Isolation function 3.Normal working environment:
Ayrıntıları görüntüle

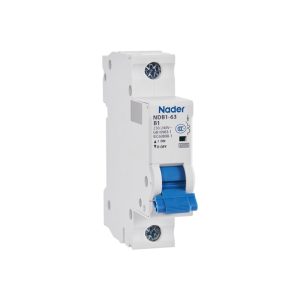

NDB1-63 MCB miniature circuit breaker
