Hydraulic- magnetic circuit breaker, NDB3-30 Z4 1P Circuit Breaker for Equipment

2023年9月26日Alçak Gerilim Ürünü 16830

Mevcut Sertifikalar UL Stok durumu, modele ve konfigürasyona göre değişir.

Genel Bakış

NDB3-30 is a compact hydraulic-magnetic circuit breaker for equipment, covering low-current AC and DC circuits. It provides overload and short-circuit protection with configurable delay curves and actuator options.

Hydraulic- magnetic circuit breaker, NDB3-30 Z4 1P Circuit Breaker for Equipment

Ürünün Avantajları

Wide Current RangeRatings from 0.1 to 30 A support control and equipment circuits.

Hydraulic-Magnetic TripThe mechanism provides consistent protection across changing ambient conditions.

Esnek YapılandırmaMounting, terminals, poles and actuator styles can be matched to the equipment.

Certified OptionsConfigurations are available to IEC, EN, UL and related requirements.

Tipik Teknik Özellikler

Anma Akımı	0.1–30 A
Anma Gerilimi	AC 250 V; DC 65 / 80 V
Poles	1 or 2
Tripping Type	Hydraulic-magnetic
Mechanical / Electrical Life	10,000 / 6,000 operations
Standards	IEC 60934, GB/T 17701, UL 1077, UL 489A

Yalnızca tipik konfigürasyon. Nihai değerler, proje gereksinimlerine göre teyit edilir.

Uygulamalar

Suitable for automation controls, power supplies, communication equipment, transportation systems and other compact AC or DC equipment circuits.

SON: RCCB SVL1M-63SONRAKİ: Circuit Breaker for Equipment, Oil damping product NDB3-50 J4 2P, Industrial Automatic Control

İlgili öneriler

NDM2E-800(M,H)
2023年5月29日 1693
1. Applicable Scope and Purpose of Circuit Breaker The NDM2E-800 series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits with the AC 50Hz, the working voltage of A...
Ayrıntıları görüntüle
NDQ3H-63
2023年5月26日 1940
1. Applicable scope and purpose The NDQ3H PC-grade automatic transfer switching equipment (ATSE) are applicable for sites with the AC voltage below 400V and the rated frequency of 50/60Hz. This product complies with the GB14048.1-2012 and GB/...
Ayrıntıları görüntüle

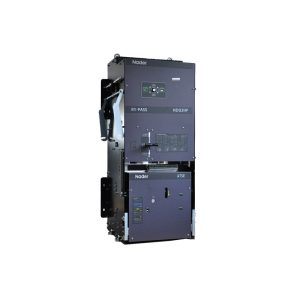

NDQ3HP
